End-to-end optimization of optics and image processing

Joint optimization of whole computer vision pipelines for true domain-specific imaging

Vincent Sitzmann*, Steven Diamond*, Yifan Peng*, Xiong Dun, Stephen Boyd, Wolfgang Heidrich, Felix Heide, Gordon Wetzstein

Code Paper

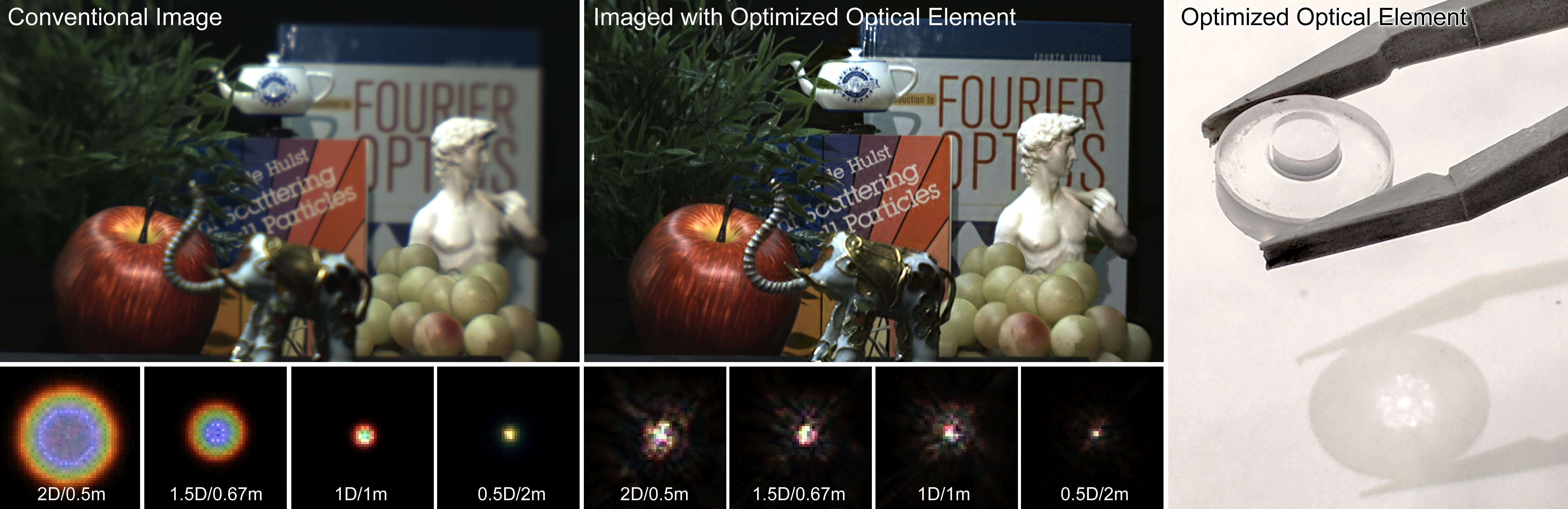

In typical cameras the optical system is designed first; once it is fixed, the parameters in the image processing algorithm are tuned to get good image reproduction. In contrast to this sequential design approach, we consider joint optimization of an optical system (for example, the physical shape of the lens) together with the parameters of the reconstruction algorithm. We build a fully-differentiable simulation model that maps the true source image to the reconstructed one. The model includes diffractive light propagation, depth and wavelength-dependent effects, noise and nonlinearities, and the image post-processing. We jointly optimize the optical parameters and the image processing algorithm parameters so as to minimize the deviation between the true and reconstructed image, over a large set of images. We implement our joint optimization method using autodifferentiation to efficiently compute parameter gradients in a stochastic optimization algorithm. We demonstrate the efficacy of this approach by applying it to achromatic extended depth of field and snapshot super-resolution imaging.

Submission Video

Related work

Check out our related work on differentiable image reconstruction:

Unrolled optimization with Deep Priors

Dirty Pixels: Optimizing Image Classification Architectures for Raw Sensor Data


@article{sitzmann2018end, title={End-to-end optimization of optics and image processing for achromatic extended depth of field and super-resolution imaging}, author={Sitzmann, Vincent and Diamond, Steven and Peng, Yifan and Dun, Xiong and Boyd, Stephen and Heidrich, Wolfgang and Heide, Felix and Wetzstein, Gordon}, journal={ACM Transactions on Graphics (TOG)}, volume={37}, number={4}, pages={114}, year={2018}, publisher={ACM} }

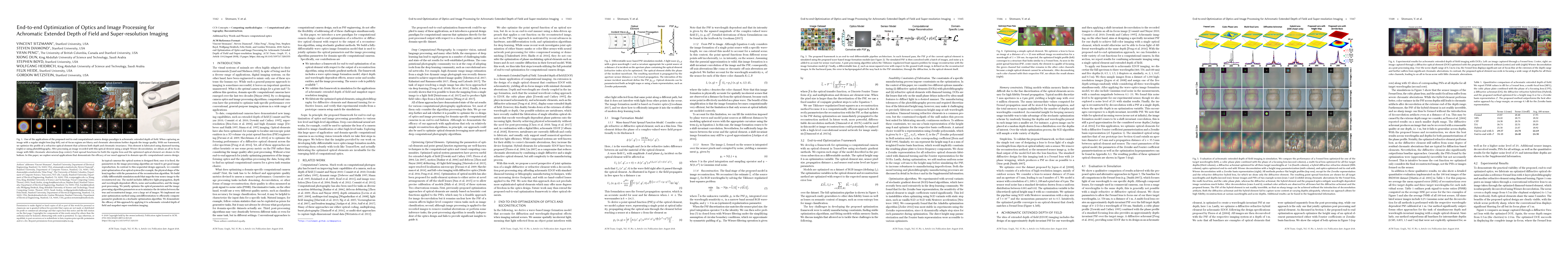

For full details, please refer to our paper.

Send feedback and questions to Vincent Sitzmann
